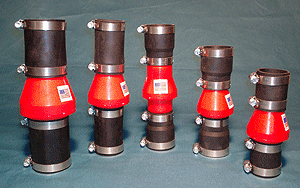

RUBBER HOSE CHECK VALVES

Valves are designed to fit on standard sump pump line connections. Easy to install over 1-1/4", 1-1/2" or 2" PVC pipe, steel pipe or copper tubing. One piece housing construction, no gasket to fail or leak. Housing is made of high grade ABS plastic and valve comes with all mounting hardware including rubber hoses and stainless steel clamps. Additional installation options can be achieved by removing rubber hoses and gluing standard PVC fittings directly to valve body.

.
.

rubber hose


. .
Part No.

CV000125
CV000150
CV0001CO

CV000FF15
CV000200		 ..
Size

1-1/4" Check Valve
1-1/2" Check Valve
1-1/4" & 1-1/2" Combination Valve
1-1/2" Check Valve - Full Flow
2" Check Valve - Full Flow		.
       Features
  • No gasket on valve body
  • Valves certified leak proof and pressure tested
  • 1-1/2 Full Flow is optimized to fit only 1-1/2" pipe offering 17% improved flow capability
  • Nested flapper
  • All mounting hardware included

.
..

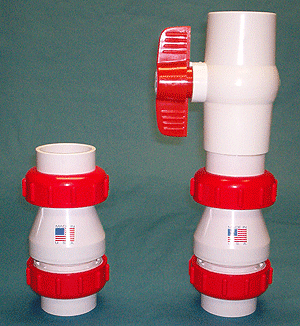

TRUE UNION SWING CHECK VALVES

Valves are designed for heavy duty use on home ejector pump applications. True union swing design is easy to remove for regular cleaning or inspections and installs vertically or horizontally to prevent back flow of sump disposal lines. Constructed of injection molded ABS thermoplastic in full flow design. Combination is ideal for applications requiring in-line ball and check valves.

.
.

true union swing check valves


. .
Part No.

CVUN0200
CVUNC200


 . .
Size

2" Union Swing Check Valve
2" Ball/Check Union Swing Combo 		.
       Features
  • True union swing design
  • O-Ring seal

.
..

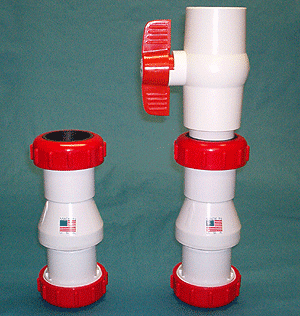

COMPRESSION SWING CHECK VALVES

Utilizes a compression seal design to lock onto outer diameter of PVC pipe. Installs vertically or horizontally to prevent backflow of sump disposal lines. Combination is ideal for applications requiring in-line ball and check valves.

.
.

compression swing


. .
Part No.

CVCMP200
CVBCC200
 ..
Size

2" Compression Swing Check
2" Ball/Check Compression Swing Combo 		..
       Features
  • Compression swing mounting
  • No gluing required when installing valve only
  • Heavy duty construction

.
